Flexural Test Methods for Plastics: ISO 178 and JIS K 7171 - Specs

Add Bookmark

Recommended Specimen

ISO 178 and JIS K7171 Specimen and Fixture Dimensions

Specimen length,l

80 mm
Specimen width,strong

10 mm
Specimen thickness,h

4 mm
Punch radius,R1

5 mm
Support radius,R2

5 mm
Distance between supports,L

16h
Read more
Show Less

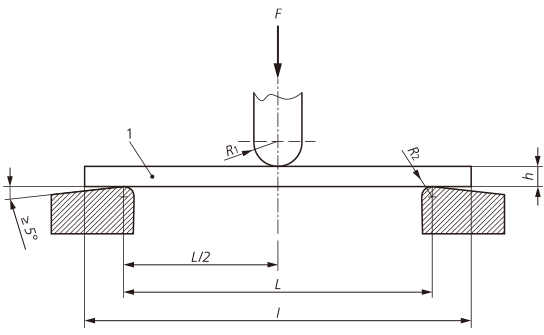

3-Point Bend Test Fixture

ISO 178 and JIS K7171 Specimen and Fixture Dimensions

Specimen length,l

-
Specimen width,strong

-
Specimen thickness,h

h> 3 mm
Punch radius,R1

5 mm
Support radius,R2

5 mm
Distance between supports,L

16h
Read more
Show Less

3-Point Bend Test Fixture

ISO 178 and JIS K7171 Specimen and Fixture Dimensions

Specimen length,l

-
Specimen width,strong

-
Specimen thickness,h

h≦ 3 mm
Punch radius,R1

5 mm
Support radius,R2

2 mm
Distance between supports,L

16h
Read more
Show Less
