Brevis™ GC-2050 - Options

Gas Chromatograph

Add Bookmark

Injection Ports

Split/Splitless Injection Unit (SPL)

Enables tool-free column connection. Septum replacement is also possible.

  • Sealing mechanism ClickTek nut
    Injection mode Split, Splitless, High Pressure Injection
    Split ratio Up to 9999.9:1
  • Pressure range 0 to 1035 kPat
    Maximum operating temperature 450 ℃


Supports capillary columns from 50 μm to 530 μm I.D. / Electronic septum purge comes built-in / Gas saver mode reduces gas consumption / Deactivation process (Option)

Detectors

Flame Ionization Detector (FID)

The FlD shows good response for all organic compounds.
It is characterized by high robustness and a wide linear dynamic range

  • Minimum Detectable
    Quantity (MDQ)    		 < 1.5 pg C/s (dodecane)
    Linear dynamic range 1 × 107 (± 10 %)
    Max acquisition rate 2 ms (500 Hz)
    Maximum operating
    temperature    		 450 ℃
    Automatic extinguishing
    detection/reignition    		 Standard-compatible
  • Flow rate settings Makeup (N2 or He) : 0 to 100 mL/min
    H2 : 0 to 100 mL/min
    Air : 0 to 1000 mL/min



Flame Photometric Detector (FPD)

The detector of choice for trace-level analysis of phosphorus (P), sulfur (S) and tin (Sn) compounds.

  • Minimum Detectable
    Quantity (MDQ)    		 < 55.0 fg P/s (tributyl phosphate)
    Minimum Detectable
    Quantity (MDQ)    		 < 2.5 pg S/s (dodecanethiol)
    Easy switching of luminous
    filters    		 P, S, Sn
    Dynamic range Tributyl phosphate (P) : 1 × 104
    Dodecanethiol (S) : 1 × 103
    Max acquisition rate 2 ms (500 Hz)
    Max operating temperature 450 ℃
  • Flow rate settings H2 : 0 to 250 mL/min
    Air : 0 to 1000 mL/min



Electron Capture Detector (ECD)

The detector of choice for trace-level analysis of electrophilic compounds such as halogenated, organometallic and nitro compounds.

  • Minimum Detectable
    Quantity (MDQ)    		 < 4.0 fg/s (Lindane)
    Dynamic range 1 × 105
    Max acquisition rate 2 ms (500 Hz)
  • Max operating temperature 400 ℃
    Flow rate settings ECD gas (N2, Ar) : 0 to 200 mL/min

LabSolutions Series

  • LabSolutions LCGC
    LabSolutions™ LCGC
    • LabSolutions Series
    • LC Software
    • GC Software

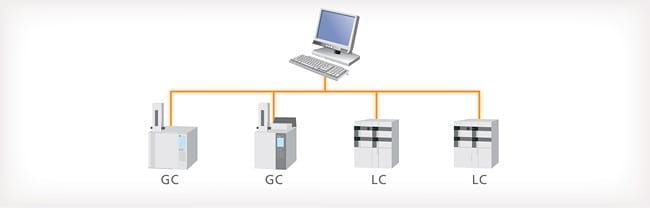

    With LabSolutions LCGC, both LC and GC systems are operated from the same software, enabling simultaneous control of multiple instruments from a single PC.
  • LabSolutions DB
    LabSolutions™ DB
    • LabSolutions Series
    • GC Software
    • LC Software
    LabSolutions DB has a data management function and is compliant with the ER/ES Regulations. It is optimally configured for customers using a PC.

GC Software

Related information

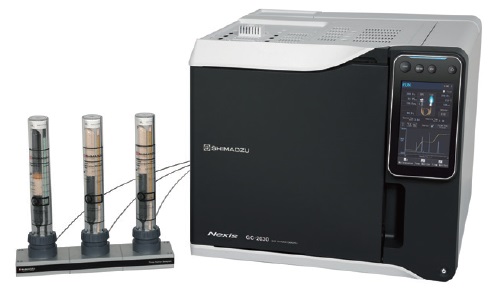

  • Gas Filter
    Gas Filter
    • GC Consumables
    Impurities in gases, such as hydrocarbons, moisture and oxygen, can contaminate the gas line and instrument, cause column degradation and affect the accuracy of your analysis results, which may lead to instrument downtime.
  • Capillary Column
    SH Series GC Columns
    • GC Columns
    • Columns
    Shimadzu supply fused silica, PLOT and metal GC columns which have a wide variety of both general-purpose and application-specific ones.

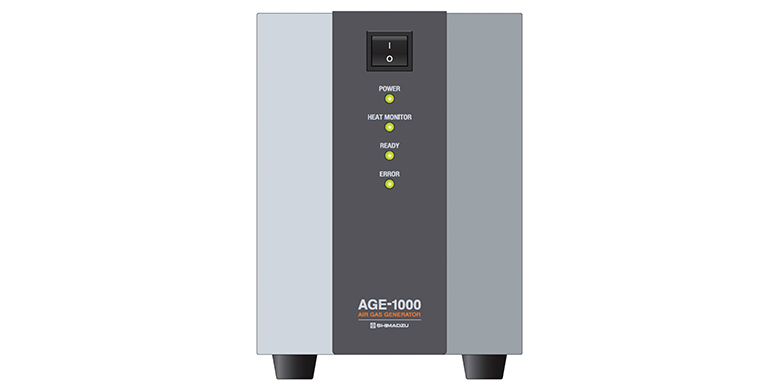

  • AGE-1000
    AGE-1000
    • GC Components & Accessories
    An AGE-1000 air gas purifier can be used to remove hydrocarbons from compressor air in order to generate compressed air with hydrocarbon levels lower than Grade 1 high-purity gas (hydrocarbon concentration of 100 ppb).
  • GC Columns & Consumables
    GC Consumables
    • GC Consumables
    • Consumable Parts
    GC Consumables are designed to complement your Shimadzu GC Systems.

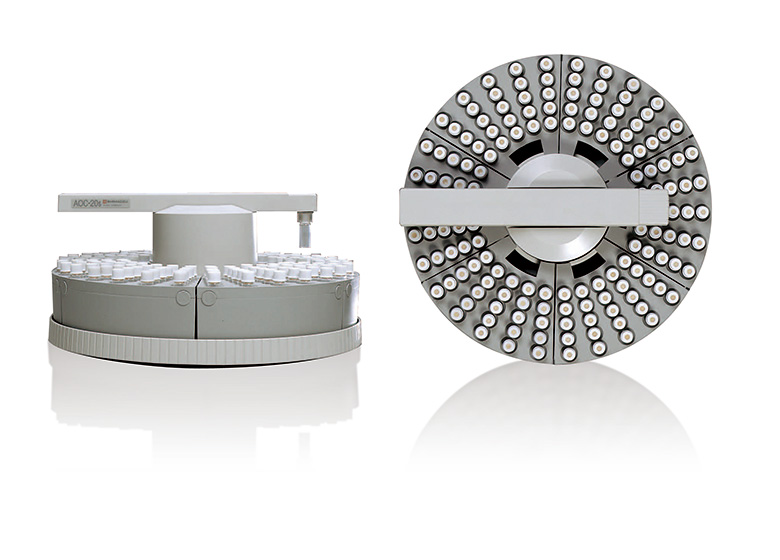

  • AOC-20i/AOC-20s
