MOC63u - Features

Unibloc Moisture Analyzer

Halogen heater
Data management and easy operation
Various measurement modes

Halogen heater

Long-life and high power halogen heater provides quick and accurate measurement.
The temperature can be changed from 50 degrees to 200 degree Celsius.
You can check sample status from window while measurement.

Large pan size: 95mm dia

MOC63u has large pwn. (95mm diameter)
It can provide quick and accurate measurement to spread sample in thin layer on the pan.

Data management and easy operation

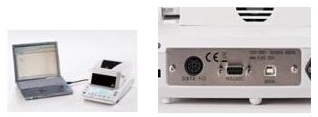

Built-in USB port

The measure results can be transferred by USB cable.
If connect with PC by USB, needs USB driver.
Please download from here.

WindowsDirect

Send balance data to Excel or other Windows applications without installing additional data communication software. By combining standard Auto print functions with typical spreadsheet functions, even difficult applications can be easily automated.

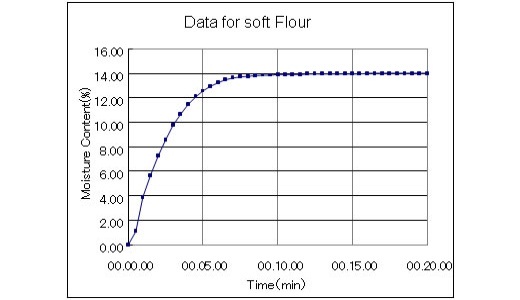

You can create graphs easily with WindowsDirect and Excel.
If you need templates, please download from here. (xls/69KB)
Connection to Windows Vista and Windows7.

Easy operation using a simple keypad

Features easy-to-operate software and keypad layout. In addition, an automatic starting mode saves measurement time, increasing your work efficiency. Operation simply requires ‘putting material on the pan and shutting the cover’. Internal memory can save 10 measurement conditions and 100 results. Various measurement modes provide extra support.

Various measurement modes

Ending modes:

Automatic ending mode

Automatically ends measurement when moisture loss over the previous 30 seconds becomes smaller than specified percentage.

Timed ending mode

Automatically ends measurement when the specified amount of time has elapsed.

Alternative drying modes:

Rapid drying mode

First dries with the highest temperature for the specified period, then shifts to the specified temperature, shortening measurement time.

Slow drying mode

Gently heats samples that might solidify at the surface or samples that reduce under high temperature.

Step drying mode

Allows step-by-step change in drying conditions. This feature is useful when measuring samples that contain a large amount of water.

Starting mode:

Automatic starting mode

Starts measurement immediately after closing the lid. It saves time in repeat measurements.
