Large Sample Compartment - Specs
Large-Sample Compartments

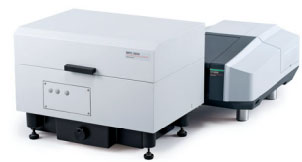

MPC-603A Multi-Purpose Large-Sample Compartment
This multi-purpose sample compartment allows measurement of various shaped samples to obtain both reflection and transmission spectra. An integrating sphere is built-in to ensure accurate measurement of solid samples.
- Original S-beam/R-beam switching function allows reflection measurement using incidence angles of 0 deg. for diffuse reflectance measurements and 8 deg. without leaning the sample for total reflectance measurements.
- The V-stage is sold separately. The sample position can be freely adjusted both forward and backward as well as up and down.
| Wavelength range |
220 to 2600 nm |
|---|---|
| Detectors |
PMT, InGaAs, cooled PbS |
| Maximum sample size |
Transmission 305 mm dia. x 50 mm thick |
Note 1: A separate space must be provided for the personal computer.
Note 2: A small tableFor the MPC-603A must be provided separate from that for the UV-3600 Plus series.

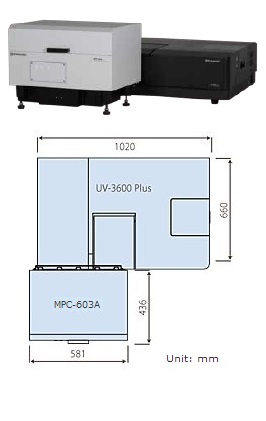

Table dimensions: Able to accommodate MPC-603A unit (W580 x D420 mm)
Table height: Within +8 to -15 mm of the UV-3600 Plus series table height
MPC-3100 Multi-Purpose Large-Sample Compartment
| Measurement wavelength range |
240 to 2600 nm (MPC-3100) |
|---|---|
| Maximum sample size |
Transmission: 305 mm dia. x 50 mm T or 204 mm dia. x 300 mm T |
For UV-3600 (MPC-3100)
MPC-2600A Multipurpose Sample Compartment
| Measurement wavelength range |
220 to 1400 nm |
|---|---|
| Maximum sample size |
Transmittance: 305 mm dia. x 50 mm T or 204 mm dia. x 300 mm |
For UV-2600 series
