UH-X/FX Series

Hydraulic Universal Testing Machines

Add Bookmark

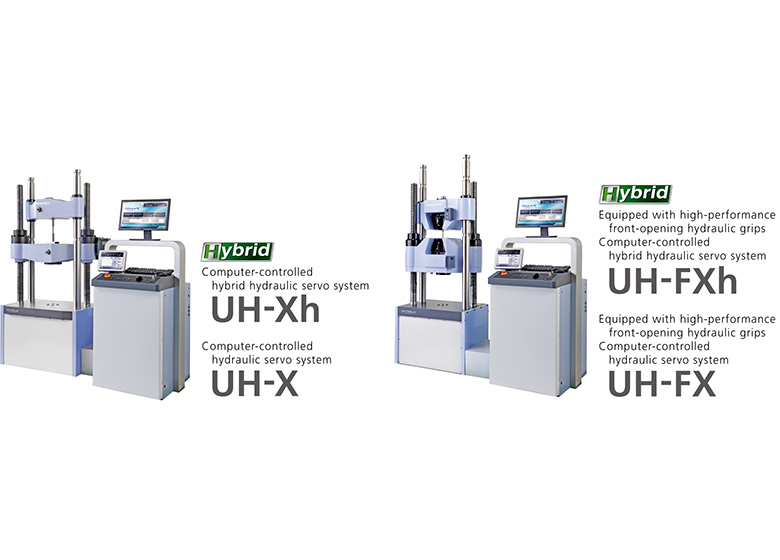

Environmentally and operator friendly state-of-the-art universal testing machine The operability and visibility of the computer-controlled hydraulic servo type universal testing machine (UH-X) and the high-performance universal testing machine (UH-FX), equipped with front opening type hydraulic grips, have been greatly improved by the adoption of a large color touch panel. Equipped with a semi autotuning function that automatically adjusts the control parameters, stress control and strain control (ISO 6892 compliant) can be easily carried out without the need for a preliminary test. The UH-Xh and UH-FXh models feature a new hybrid hydraulic oil source that reduces the required quantity of hydraulic oil, thereby achieving a major reduction in electrical power (about 50 %).

UH-X/FX Series

Features

  • 350 - UH-X/FX Series
    Control Performance and Ease-of-Operation

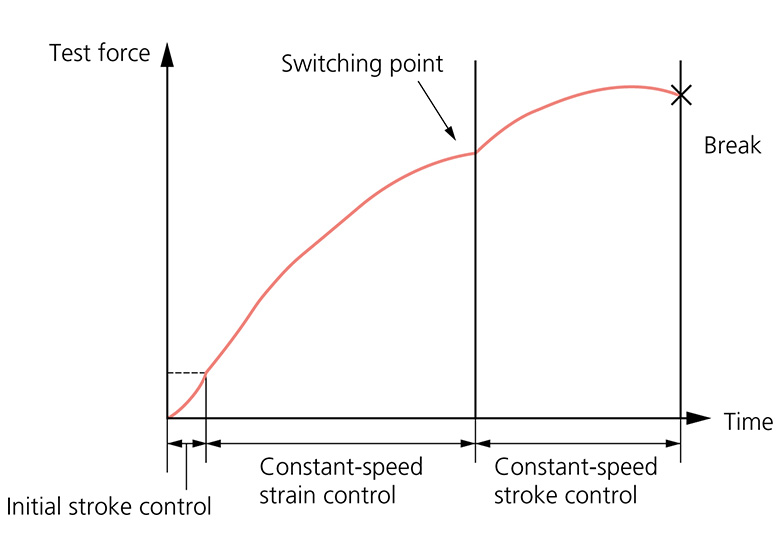

    Semi-Auto-Tuning Function Enables High Precision Stress Control and Strain Control
    (compliant with ISO 6892-2009 and JIS Z2241 metallic materials tensile testing standards)
    Extra-Large Color LCD Touch-Screen Significantly Improves Ease-of-Operation and Visibility
    Rangeless Data Measurement
    Key Switch Included Standard
    USB Memory Enables Performing Tests Without Connecting to a Computer
    Crosshead Elevating Switch Box (optional) Provides Finger-Tip Control
  • 350 - UH-X/FX Series
    Reliability and Safety

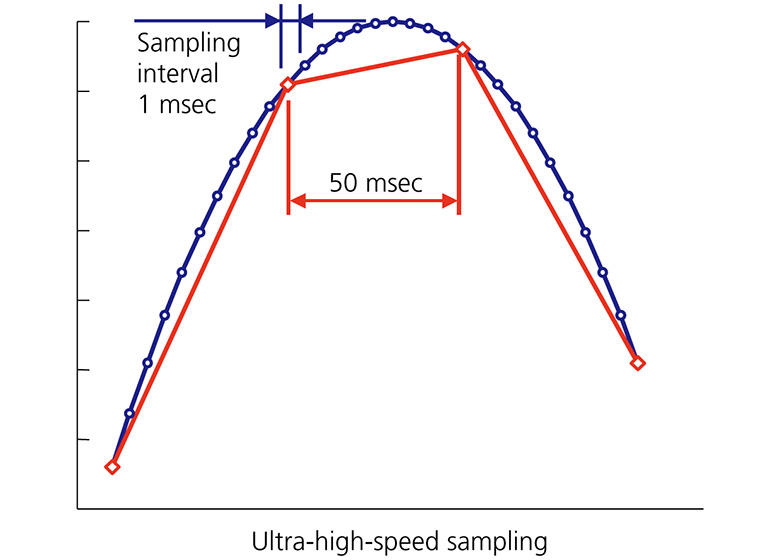

    Ultra-High-Speed Sampling Function Ensures No Sudden Variations in Strength Are Missed
    A Variety of Automatic Control Programs Included Standard
