TRAPEZIUM X

Material Testing Software

Add Bookmark

TRAPEZIUM X

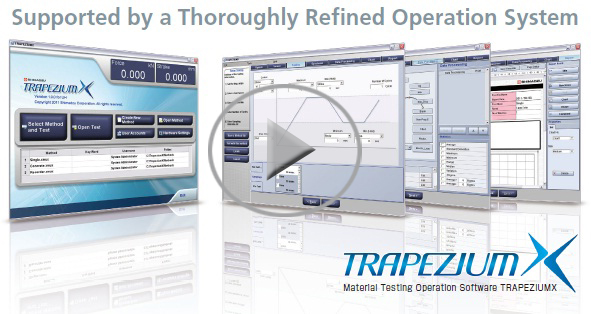

Windows 10 compatible TRAPEZIUM X can carry out various tests ranging from simple test control to complex custom-made patterns, using the industry's first data search and preview function, free layout reports, visual wizard settings, quick panel, and quick conditions lists.

Features

  • 363 - TRAPEZIUM X
    Enables Intuitive Operation

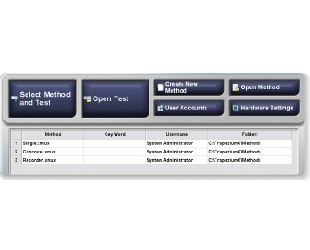

    Search files and select parameters quickly by simply touching the screen to perform consecutive tests efficiently.

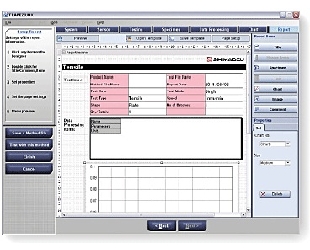

    Data Processing Settings Screen
    (Metal is selected as the material on the screen, but rubber and plastic are also available.)
    Screen for setting specimen quantity and dimensions
  • 363 - TRAPEZIUM X
    Quickly Obtain the Data Needed

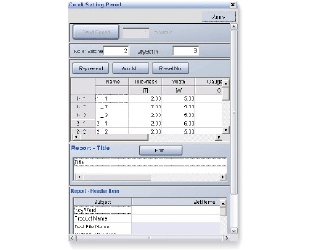

    The Quick Setting Panel enables quickly entering speed, dimensions, report information, and other settings directly into the Main screen.
    More advanced navigation, with a teaching function
    Retest, Add test, and File merge functions
Learn more
