TRViewX

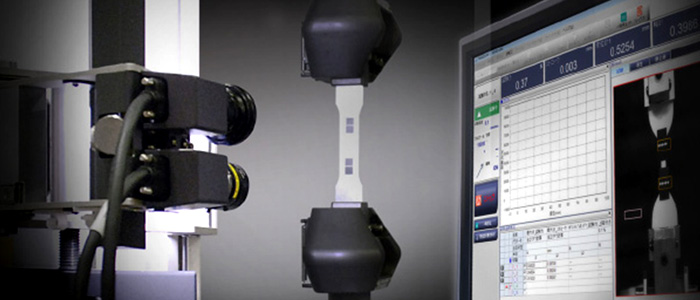

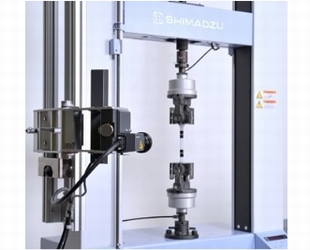

Non-Contact Digital Video Extensometer
TRViewX is an advanced non-contact extensometer that offers high-measurement accuracy, is capable of measuring width changes, and is applicable to a wide variety of materials testing applications. In particular, due to the non-contact design, TRViewX is perfect for measuring films, foils, and other thin or narrow materials without affecting the specimen during testing. Furthermore, TRViewX can be used to measure displacements during atmosphere-controlled testing in a thermostatic chamber. TRViewX provides high-accuracy measurements in accordance with ISO 9513 Class 0.5 and JIS B 7741 Class 0.5 for elongation measurements and ISO 9513 Class 1 and JIS B 7741 Class 1 for width measurements. It is compliant with plastic tensile testing standards, including ISO 527, JIS K7161, and ASTM D638, even supporting 75 mm gauge length specimens (type A1 specimens) specified in ISO 527 and JIS K 7161.
Features
-
-

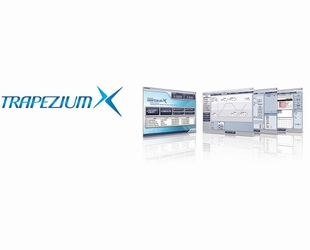

The complete integration with easy-to-use Trapezium X testing software simplifies operation and enables images to be included in reports.
Videos
-
TRViewX Non-Contact Digital Video Extensometer-Example of Plastic Measurements
TRViewX is an advanced non-contact extensometer that offers high-measurement accuracy, is capable of measuring width changes, and is applicable to a wide variety of materials testing applications. In particular, due to the non-contact design, TRViewX is perfect for measuring films, foils, and other thin or narrow materials without affecting the specimen during testing.
-
TRViewX Non-Contact Digital Video Extensometer -Example of Open Hole CFRP Plate Measurements
TRViewX Non-Contact Digital Video Extensometer -Example of Open Hole CFRP Plate Measurements
-
ASTM D5379 V-Notched Beam Testing (losipescu) of CFRP
The V-notched beam testing method (Iosipescu method, ASTM D5379) is used widely in the field of composite materials for testing in-plane shear. This test method applies an asymmetrical four-point compression load to a sample with V-notches, which enables the application of only shear stress on the evaluation area.
This method can be used with various CFRP laminate materials, including unidirectional materials, orthogonally laminated materials, and materials with discontinuous fibers. -
ASTM D6484 Open-Hole Compression (OHC) Testing of CFRP
CFRPs have excellent characteristics in terms of specific strength and high rigidity, but they also lose a substantial amount of their strength when a cutout is made. In order to assess the use of composite materials for aircraft, tests must be performed with samples that have a circular hole cut through the center. ASTM D6468 is an open-Hole compression (OHC) testing method that uses a sample with a 6-mm (0.25-inch) diameter circular hole cut in its center.
ASTM D6468 has two loading methods: method A and method B. This video shows method B, in which the sample is compressed via compression plates located on the ends of the sample and jig.
-
ASTM D6641 Combined Loading Compression (CLC) Testing of CFRP
Compressive strength is an extremely important property of composite materials for product design. A common compression test method is the combined loading compression (CLC) method (ASTM D6641).
The CLC method can be performed with a simple jig construction, using a long and narrow sample without tabs. It enables evaluating strength and measuring modulus of elasticity simultaneously.
