Automated actions and user-friendly operability increase testing throughput

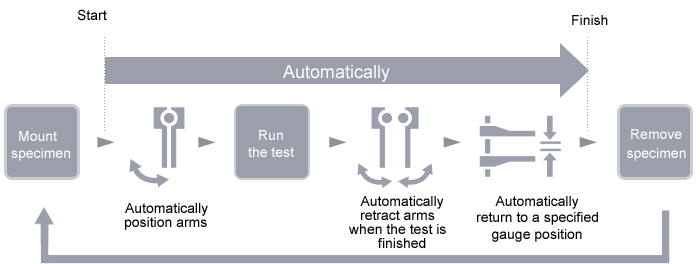

Functions of the SIE-560A series, including the automatic detection of the mid-point between upper and lower grips, the automatic return to a specified gauge position, and the automatic release of specimens after testing is finished, ensure that routine testing can be performed conveniently and reproducibly.

Integration of the SIE-560A series into Trapezium X materials testing software eliminates the trouble of having to go back and forth between the software and the test system.

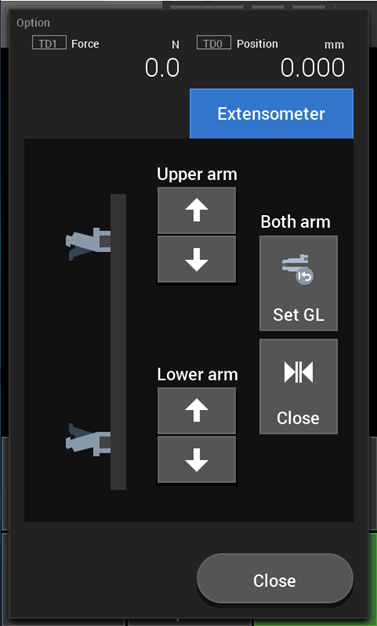

In addition, the smart controller on AG-X plus test frames provides the flexibility to operate the extensometer next to the test system.

High Measurement Precision

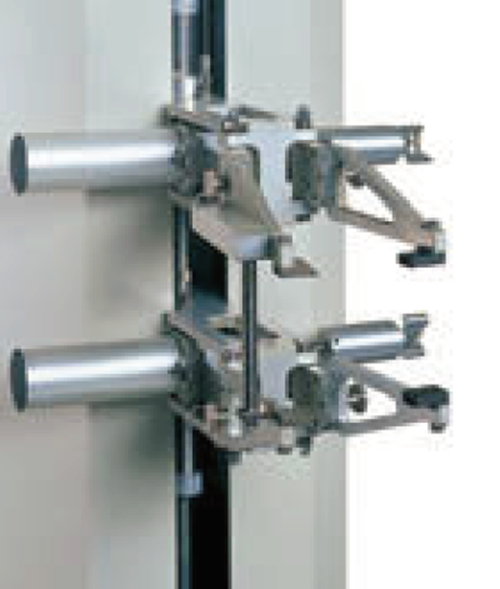

The SIE-560A series high-precision measurements are the result of a high-precision magnetic induction linear sensor, an ultra-high precision strain gauge sensor (on SIE-560SA models only), and a newly developed digital strain engine.

■ SIE-560SA High-Precision Automated Extensometer
Measures the modulus of elasticity in accordance with ISO 527, JIS K 7161, JIS K 7162, and ASTM D638 plastics tensile testing standards and ISO 6892, JIS Z 2241, and ASTM E8 metallic materials
ISO 9513 Class 0.5, JIS B7741 Class 0.5
ASTM E83 Class B

■ SIE-560A Automated Extensometer
Measures the modulus of elasticity in accordance with the ASTM D638 plastics tensile testing standard and ISO 6892, JIS Z 2241, and ASTM E8 metallic materials tensile testing standards.
ISO 9513 Class 1, JIS B7741 Class 1
ASTM E83 Class C
