DT Series - Specs
Differential Transformer Type Extensometers
DT50-50-45
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples

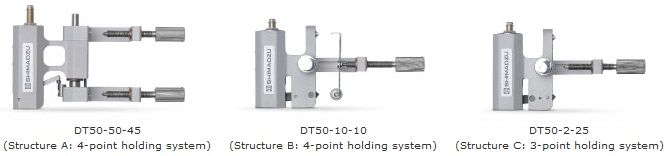

| Structure |
A |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø23 to 45 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 23 to 45 |
| Measurement Range (mm) |
25 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-10-45
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
C |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø23 to 45 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 23 to 45 |
| Measurement Range (mm) |
5 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-2-45
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
C |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø23 to 45 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 23 to 45 |
| Measurement Range (mm) |
1 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-50-25
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
A |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø6 to 25 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 6 to 25 |
| Measurement Range (mm) |
25 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-10-25
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
C |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø6 to 25 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 6 to 25 |
| Measurement Range (mm) |
5 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-5-25
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
C |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø6 to 25 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 6 to 25 |
| Measurement Range (mm) |
2.5 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-2-25
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
C |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø6 to 25 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 6 to 25 |
| Measurement Range (mm) |
1 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-5-45
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
C |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø23 to 45 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 23 to 45 |
| Measurement Range (mm) |
2.5 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-10-10
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
B |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø3 to 10 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 0.2 to 10 |
| Measurement Range (mm) |
5 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-5-10
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
B |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø3 to 10 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 0.2 to 10 |
| Measurement Range (mm) |
2.5 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
DT50-2-10
Measurement range: Max. 25 mm (4 types)Gauge length: 50 mmAccuracy: Extensometer Class 1 (Within ±3 μm or ±1 % of the specified value, whichever is larger)
Size and Measurement Range for Applicable Samples
| Structure |
B |
|---|---|
| Applicable SampleNote) :Rod Diameter (mm) |
ø3 to 10 |
| Applicable SampleNote) : Flat Plate W × T (mm) |
W 40 (max.) × T 0.2 to 10 |
| Measurement Range (mm) |
1 |
*1)This Precision is the value when calibrated simultaneously with the amp. Existing amps will require on-site calibration.
*2)The latest version of amp built into the UH-X/FX and AG-X, or the latest ESA amp, is required for compliance with these DT extensometers. Existing amps may not be compliant.
*3)These DT extensometers do not accommodate fractures.
Note: Samples should have enough rigidity so they are not deformed when installing the extensometer.
