DSES-1000

Long-Travel Extensometer for Soft Materials

Add Bookmark

DSES-1000

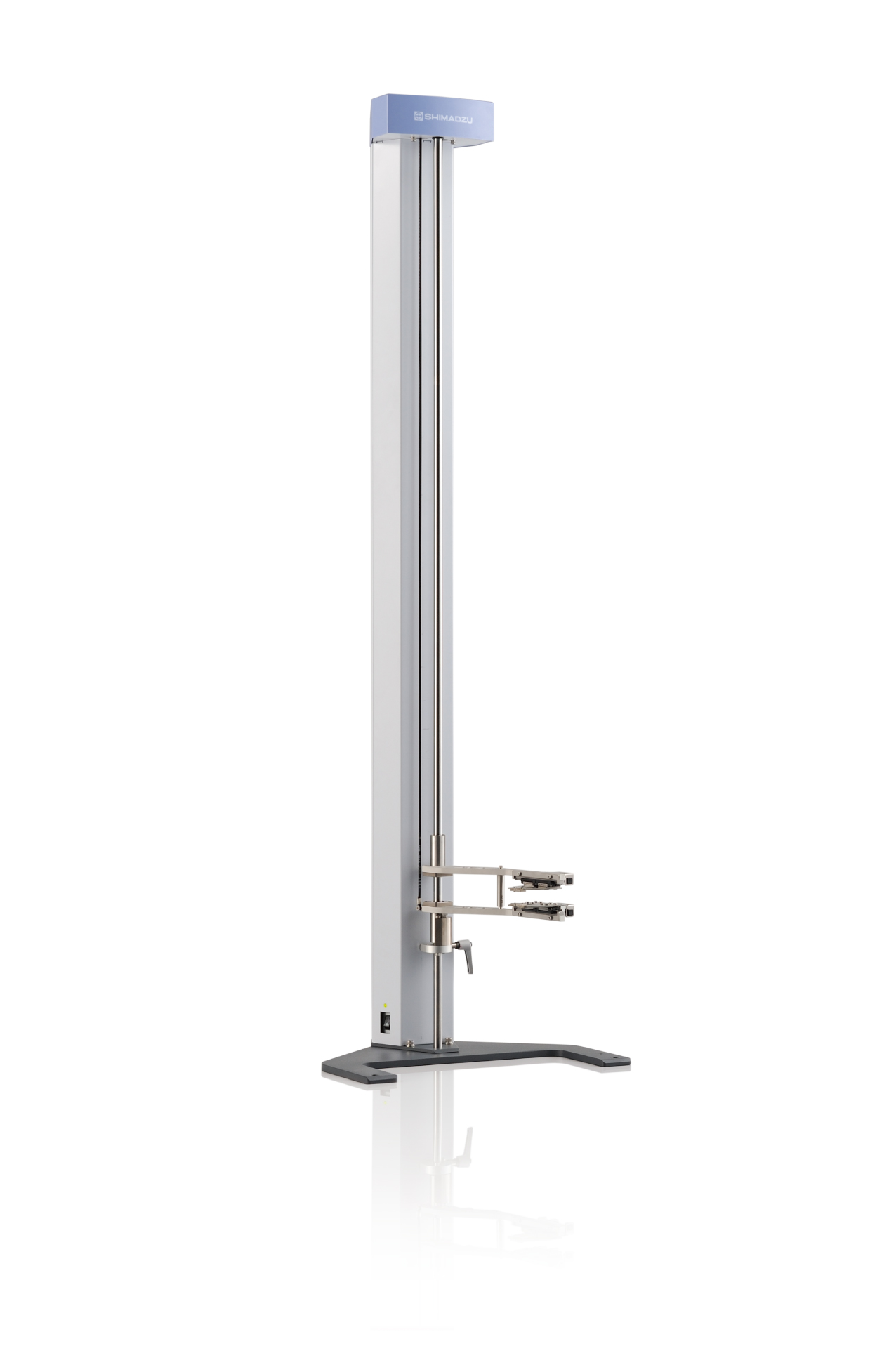

A Long-Travel Extensometer That Is Now Easier to Use and Even More Precise The DSES-1000 is a long-travel contact-type extensometer able to measure displacement up to the breakpoint in tensile tests of rubber and other soft materials. The upper and lower arms are clamped to respective gauge positions using a simple single operation, with each arm tracking sample elongation independently.

Features

  • 371 - DSES-1000

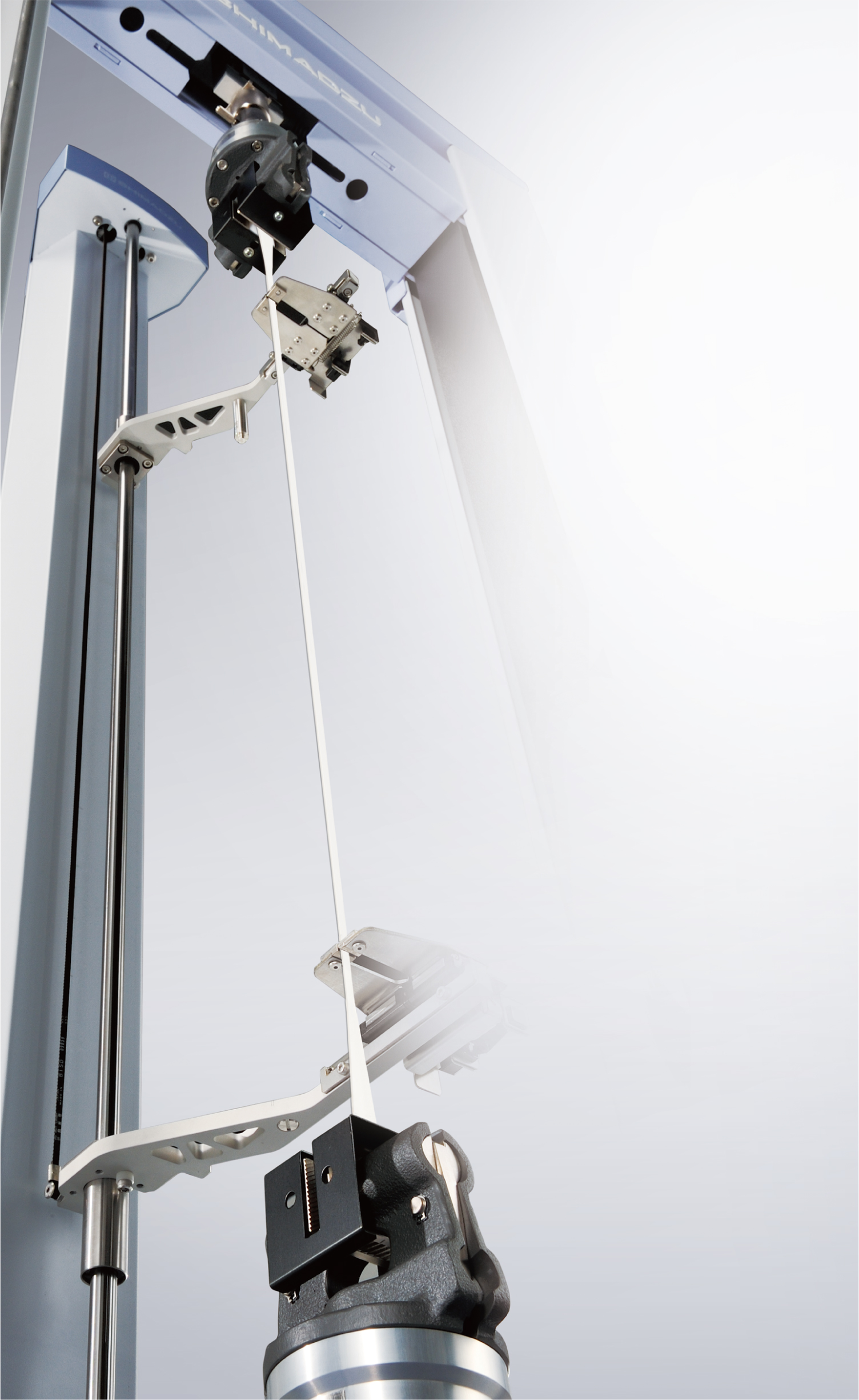

    1000 mm Maximum Movement Distance
    The DSES-1000 can measure elongations up to 4000% for gauge lengths of 10 mm, 2000% for gauge lengths of 20 mm, 1600% for gauge lengths of 25 mm, or 1000% for gauge lengths of 40 mm.
    A floating arm mechanism (patent pending) ensures tests can be performed reliably without the arms disengaging from samples.
  • 371 - DSES-1000

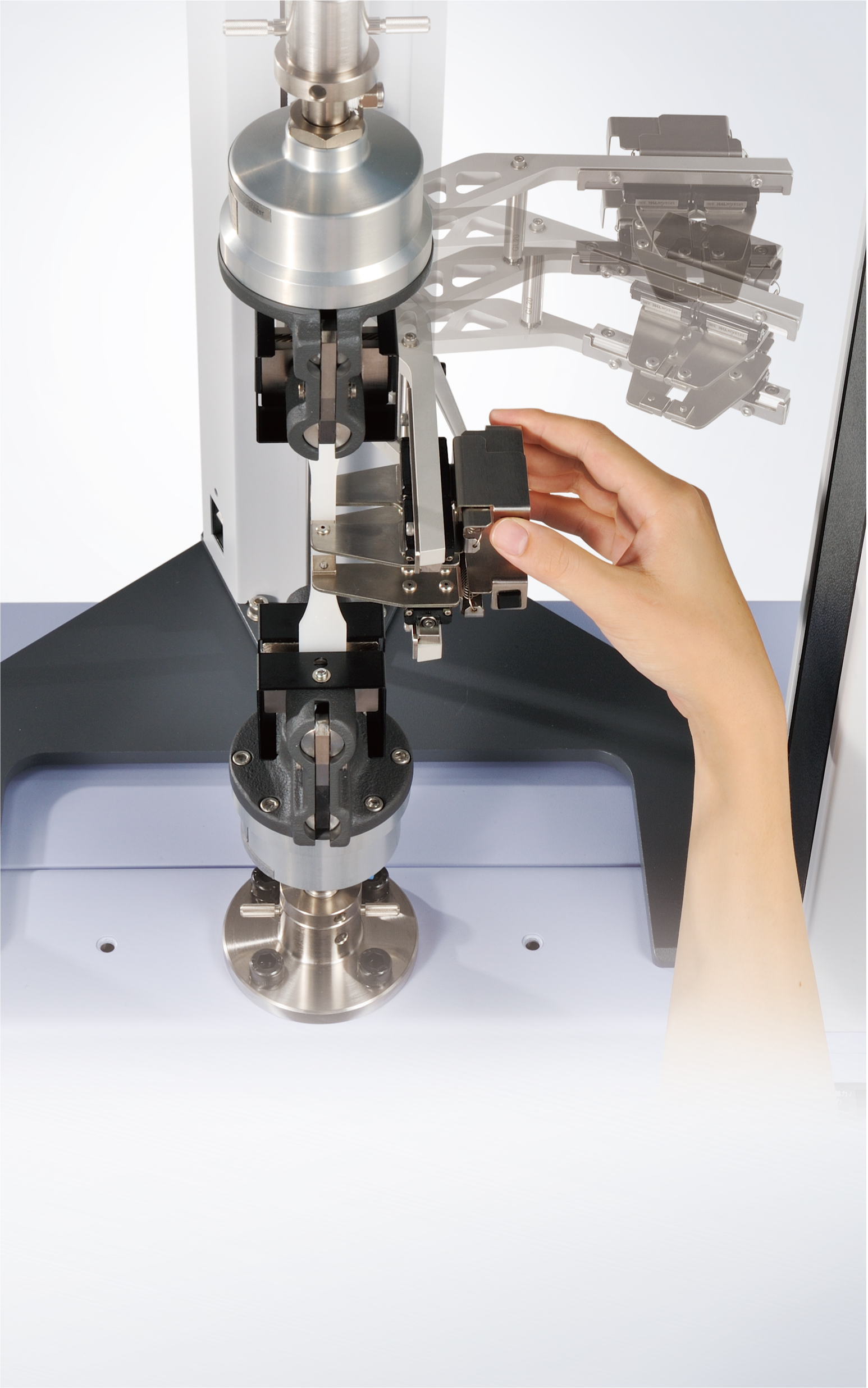

    Quick Clamping
    The lateral quick clamping mechanism makes it easy to center the mounted position of extensometer edge with the sample.
    The extensometer can also be attached to the sample first, before chucking the sample.
Learn more

Videos

  • DSES-1000 Long-Travel Extensometer for Soft Materials

    • Material Testing

Learn More
