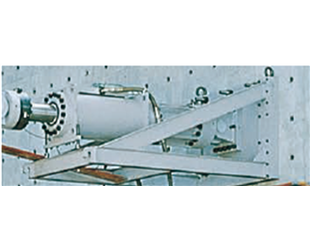

Static Jack System

The servo actuator system applies static test force loads on structures at high precision to obtain their mechanical characteristics on an experimental basis.

Features

Exactly Capturing the Strength Characteristics of Structures
Displacement is controlled in a stepped manner by using a monitor control wave, and successively and repeatedly increased and decreased to measure strain at each point, displacement and other parameters to obtain static strength characteristics.

Various combinations of servo actuator and hydraulic power supply capacity are possible according to the aim of the experiment and scale.

Pseudo-dynamic test software is available.
