Nexera FV - Features
Ultra High Performance Liquid Chromatograph for Online Dissolution Testing
-Provides Labor Savings and Faster Speeds in Dissolution Testing-

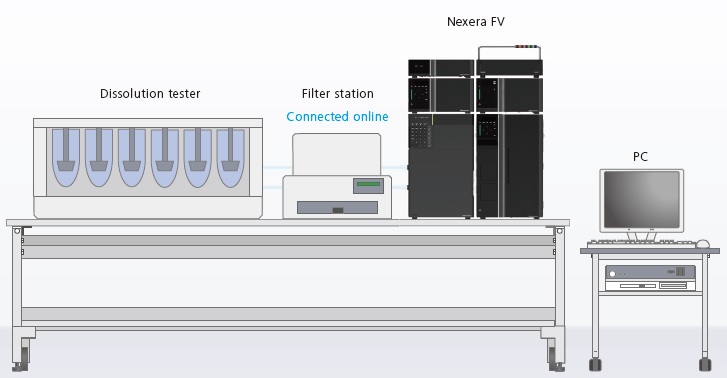

System Configuration for Online Dissolution Testing
With the Nexera FV, the dissolution tester and the autosampler are connected online, so everything is automated from sampling to dilution to data acquisition and analysis. As a result, there is less test-related work for the operator, and a subsequent increase in processing throughput.
In addition, there is no manual dispensing of samples, ensuring reliable results.

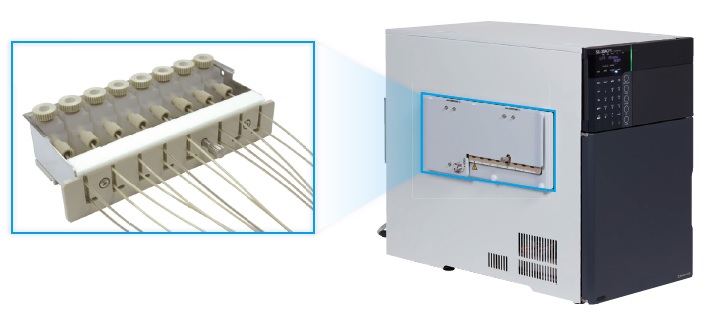

Flow Vials Provide Automated of Dissolution Testing
A dissolution medium from the dissolution tester flows directly into flow vials loaded into the autosampler. A bubble suppression design has been adopted for these flow vials, enabling high-accuracy sampling of dissolution media.
Depending on the dissolution tester used, 8 or 12 flow vials can be loaded. Further, since the flow vials are purposefully designed not to control the temperature, salt precipitation from the dissolution medium is suppressed.
-Enables Testing of Quickly Dissolving Samples-
Two Analysis Modes Promote Faster Dissolution Testing

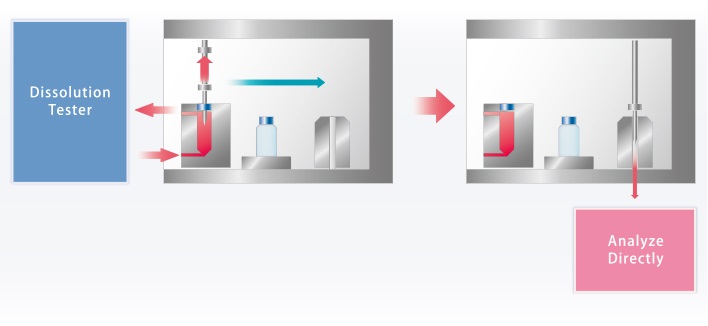

Direct Injection Analysis Mode: Exclusively with the Nexera System
In this mode, the dissolution medium delivered from the dissolution tester is directly loaded and analyzed. This is effective if the analysis of the number of vessels finishes before the next sampling interval.
This analysis mode can be selected precisely because the Nexera FV is compatible with UHPLC analysis.

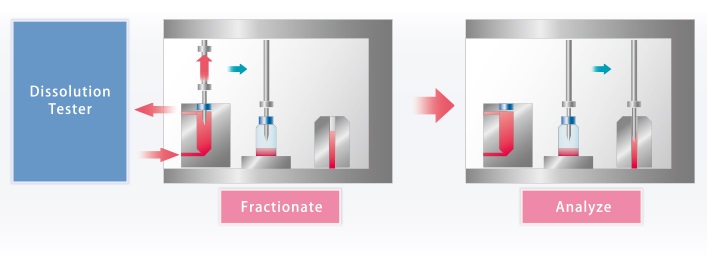

Fraction Analysis Mode: For Confirmation of Dissolution Profiles at Short Sampling Intervals
This analysis mode is used for tests in which the sampling interval is short. This is suitable when checking the dissolution profile of instantly soluble samples. The Nexera autosampler's high-speed performance makes this system compatible with sampling intervals as short as five minutes. In addition, up to 768 samples can be fractionated, making this mode effective when the dissolution quantity is large and dilution will be required.
Reliable Performance Expands the Range of Choices
Compatible with High-Concentration Samples Requiring Dilution
High dissolution quantity samples often require dilution. Samples can be diluted by using the fraction analysis mode. High injection accuracy is provided even at trace quantities, enabling reliable dilution even without manual handling.
The data shows a comparison between a standard liquid (aqueous caffeine solution), with the dilution ratios manually adjusted by an experienced engineer, and a standard liquid automatically diluted by the Nexera FV. This data shows that the system can perform dilution reliably.
| Dilution Ratio (Times) | Dilution Accuracy (%) |
| 2 | 100 |
| 5 | 100 |
| 10 | 101 |
| 20 | 101 |
| 50 | 101 |
| 100 | 102 |

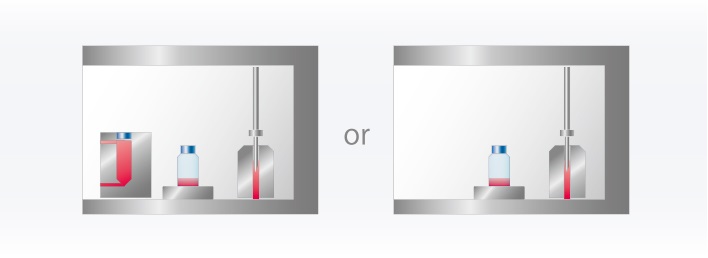

One System Plays Two Roles, Significantly Improving the Throughput of the Testing Lab
The Nexera FV is a multipurpose system for on-line dissolution testing and high-efficiency UHPLC analysis, such as compound screening, and everyday method development applications. This significantly increases the system operation rate in the laboratory.
Long-Lasting Consumables Provide for High Cost-Effectiveness
A special septum is used for the flow vial that receives the dissolution medium. It boasts a better degree of adherence after needle penetration in comparison to a regular septum, and can be used for 100 continuous injections without leaking. This greatly reduces maintenance, enabling continuous testing.
-Substantial Improvements in Work Scheduling-
Special Software Makes Testing Preparation More Efficient

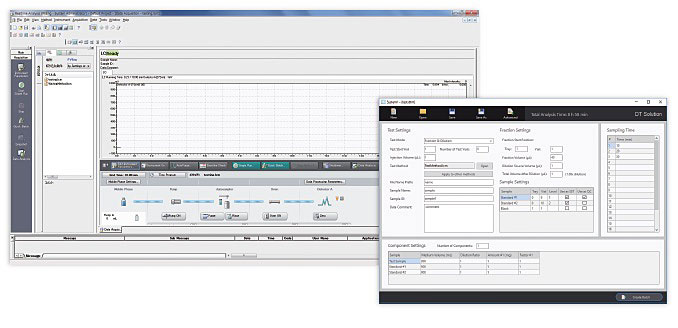

DT-Solution Software Supports the Creation and Implementation of Test Schedules
With dissolution tests, one of the most labor-intensive processes is establishing a batch schedule for the test. The custom DT-Solution software eases the burden. With this software, the user can configure all the required information in a single window. Then, click a single button to automatically generate a batch schedule in LabSolutions™ software so that testing can start. In dissolution tests performed with the Nexera FV, preparation time is minimal.

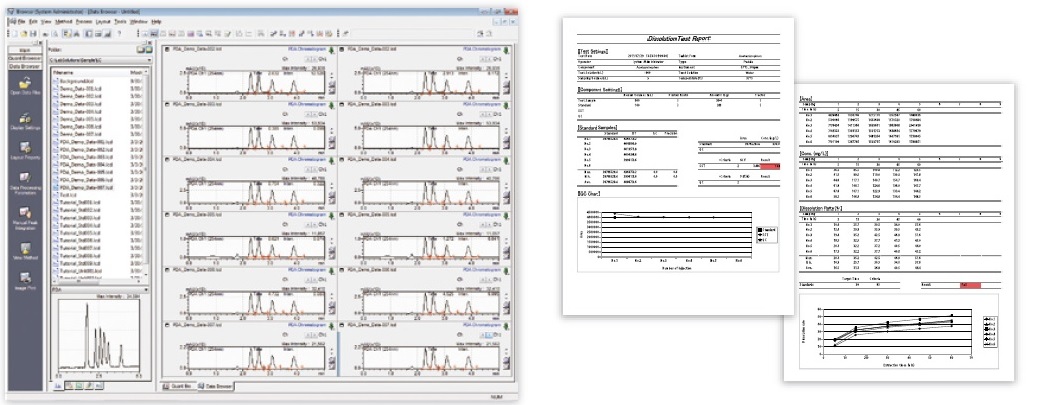

Rapid Confirmation of Test Results and Automatic Generation of Reports
The browser function built into LabSolutions is convenient for assessing changes in the chromatogram over time. Multiple data sets can be displayed simultaneously in a single window, so the data can be compared at a glance. In addition, the creation of reports on can be completely automated with the multi-data report function. When the test finishes, a result table, pivot graphs, and test pass/fail judgments for each component are created automatically, so the test results can be rapidly confirmed.
Nexera and LabSolutions are trademarks of Shimadzu Corporation.
