Shim-pack XR Series

HPLC Column

Add Bookmark

Shim-pack XR Series

Shim-pack XR Series columns use a 2.2 μm packing particle size and offer a skillful balance between resolution efficiency and pressure. An XR Series column resolution equivalent to a general-purpose column with 5 μm packing particle size (Shim-pack VP-ODS), but significantly reduces the analysis time. The pressure on the column under many analysis conditions does not exceed 35 MPa. Consequently, ultrafast analysis can be comfortably performed on an existing instrument.

Features

  • 49-5 - Shim-pack XR Series
    Shim-pack XR Series Columns Offer Versatility and Fast Analysis
    Shim-pack XR-ODS Permits Simple Switching from Conventional Analysis

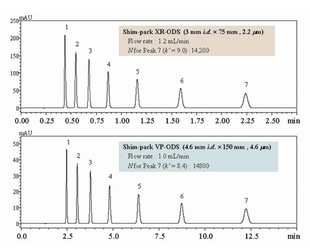

    The two chromatograms to the right show conventional analysis that is performed faster. The lower chromatogram is the result of analysis using a Shimadzu Shim-pack VP-ODS general-purpose column.
  • 49-5 - Shim-pack XR Series

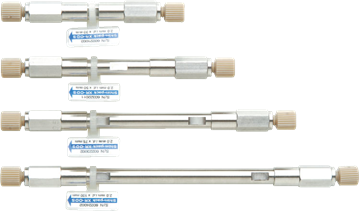

    Shim-pack XR Series Comprehensive Product Range

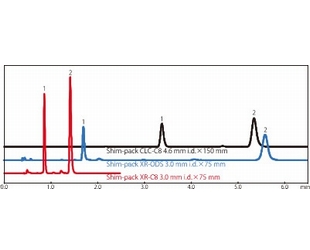

    Customers can select the ideal column for the intended analysis. In addition to the versatile Shim-pack XR-ODS that is bonded with the C18 group, the comprehensive Shim-pack XR Series product range includes the Shim-pack XR-C8 that is bonded with the C8 group to give different retention behavior to ODS...
Learn more
