Shim-pack MC Series - Features
HPLC Column
Improved LCMS Sensitivity by Analysis with Micro Solvent Delivery

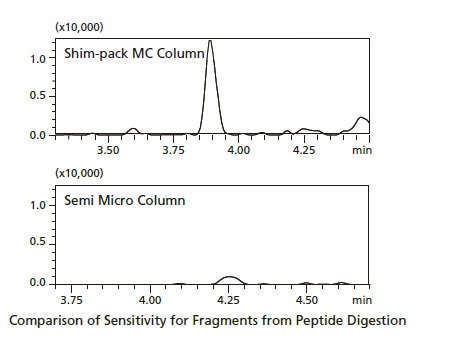

The use of a micro-bore column compatible with mobile phase flowrates as low as 1 μL/min significantly improves the sensitivity of LCMS analysis.
Excellent Durability in Routine Analyses of Biological Samples

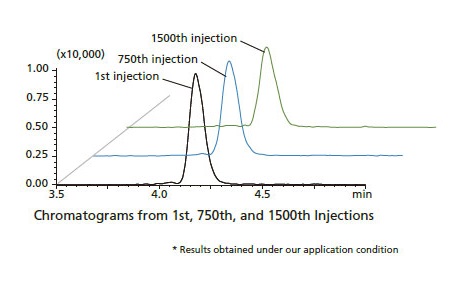

Stable peak forms and retention times are obtained even after 1500 injections of plasma samples with only deproteinization by organic solvents.
UF-Link Column-MS Interface Connection Mechanism
With UF-Link, a column-MS interface connection mechanism for Shimadzu micro LCMS systems, simply place the column in the column oven and swing over the lever to provide improved sensitivity, without the risk of sample diffusion outside the column.

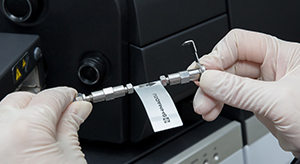

Attach the adapter to the column. The unified threads on the adapter make it compatible with a wide variety of columns.

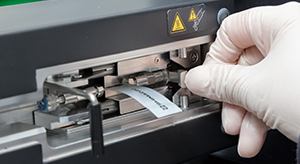

Place the column in the UF-Link mechanism inside the oven.
Complete the connection by swinging over the lever.
Product Information
| P/N | Model Name | Solid Phase | Particle Size | Size |
| Analysis Columns | ||||
|---|---|---|---|---|
| 228-59937-91 | Shim-pack MC C18 | C18 | 1.9 µm | 0.3 mm i.d. x 50 mm L. |
| 228-59937-93 | Shim-pack MC C18 | C18 | 1.9 µm | 0.175 mm i.d. x 50 mm L. |
| 228-59937-95 | Shim-pack MC C18 | C18 | 1.9 µm | 0.15 mm i.d. x 50 mm L. |
| P/N | Model Name | Solid Phase | Particle Size | Size |
| Trapping Columns | ||||
|---|---|---|---|---|
| 228-59938-91 | Shim-pack MCT C18 | C18 | 3 µm | 0.3 mm i.d. x 35 mm L. |
| 228-59938-92 | Shim-pack MCT C18 | C18 | 3 µm | 0.5 mm i.d. x 35 mm L. |
| 228-59939-91 | Shim-pack MCT C8 | C8 | 3 µm | 0.3 mm i.d. x 35 mm L. |
| 228-59939-92 | Shim-pack MCT C8 | C8 | 3 µm | 0.5 mm i.d. x 35 mm L. |
