Achieves a resolution comparable to an UHPLC column but at approximately 3/5 the pressure

Designed to meet demands for easy, high-resolution analysis with existing HPLC systems, the Shim-pack HR-ODS 250 mmL. × 3 mmI.D. column achieves resolution comparable to UHPLC columns.

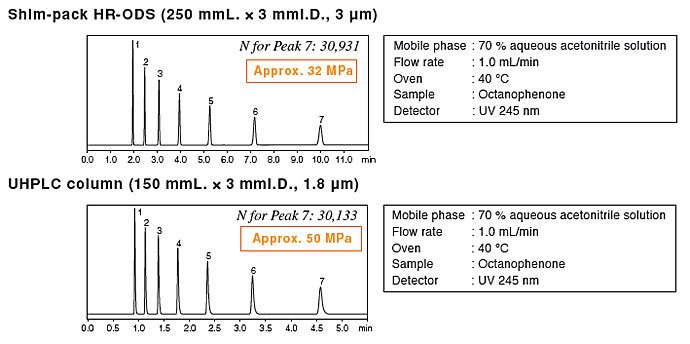

The following example shows a comparison with a UHPLC column. Comparing the 7th peaks, both have a theoretical plate number in excess of 30,000, and it is evident that the Shim-pack HR-ODS achieves resolution comparable with the UHPLC column. Furthermore, since the pressure of approximately 32 MPa is restrained to about 3/5 that of the UHPLC column, it is clear that this column can be used even with general-purpose HPLC.

Sample analysis with a conventional system taking advantage of the high resolution

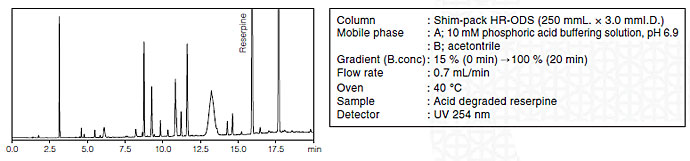

The Shim-pack HR-ODS enables high resolution, comparable with UHPLC, even with a conventional HPLC system. As an example acid degraded reserpine was analyzed as an impurity. Since the pressure on the system is about 30 MPa or less, it is evident that high resolution can be achieved even with a conventional HPLC system.

Lineup

The Shim-pack HR-ODS lineup features the sizes outlined below. In addition to the long 250 mm size intended for high-resolution analyses, 100 mm and 150 mm sizes are also available. These columns provide shorter analysis times than conventional analysis columns with a packing material particle size of 5 μm.
Shimadzu is able to provide the optimal column to suit your objective, whether that is high resolution with a conventional HPLC system or shorter analysis times.

Column  Particle
Size
 Pressure
Tolerance
 Column
Size
 2.1 mmI.D. 3.0  mmI.D.
Shim-pack
HR-ODS
3.0 μm  50 MPa  100 mm
 150 mm
 250 mm

Specifications

Shim-pack HR-ODS
Column Particle
size
Pore
size
Surface modification
pH
range
Maximum pressure
(as a guide)
Maximum temperature
Shim-pack
HR-ODS
 3.0 μm 10 nm  - - 50 Mpa -

* Appearance and specifications are subject to change without notice.
