Shim-pack Diol Series - Features

HPLC Column

Add Bookmark

Shim-pack Diol Series Analysis Examples

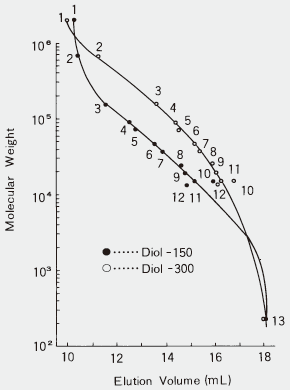

Calibration Curves
■Peaks
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13. 		 Blue dextran 2000
Thyroglobulin
y-Globulin
Transferrin
Human serum albumin
Ovalbumin
β-Lactoglobulin
Chymotrypsin
Myoglobin
Lysozyme
Ribonuclease A
Cytochrome C
Gly-Tyr

■Conditions
Column ： Shim-pack Diol Series (500 mmL × 7.9 mmI.D., 5 μm)
Mobile Phase ： A) 10mM phosphate buffer solution (pH 7)
B) 0.2M sodium sulfate
Flow Rate ： 1.0 mL/min
Col. Temp. ： Ambient
Detection ： UV 280 nm


Analysis of Protein Standard
■Peaks
1.
2.
3.
4.
5. 		 Glutamate dehydrogenase
Lactate dehydrogenase
Enolase
Adenylate kinase
Cytochrome C

■Conditions
Column ： Shim-pack Diol-300 (500 mmL × 7.9 mmI.D., 5 μm)
(P/N: 228-14776-92)
Mobile Phase ： A) 10mM phosphate buffer solution (pH 7)
B) 0.1M sodium chloride
Flow Rate ： 1.0 mL/min
Col. Temp. ： Ambient
Detection ： UV 280 nm

For more applications, please click here.

Product Information

Column Stationaryphase Particle Size(µm) Dimensions(I.D. x Length, mm) P/N
Shim-pack Diol-150 Diol group 5 7.9 x 250 228-14775-91
7.9 x 500 228-14775-92
Shim-pack Diol-300 Diol group 5 7.9 x 250 228-14776-91
7.9 x 500 228-14776-92
Pre-column Diol * Diol group 10 4.0 x 50 228-16367-91

* Installed between the liquid pump and the sample injector to protect Shim-pack Diol column.
