Shim-pack GWS Series - Features

HPLC Column Solutions

Add Bookmark

Column Chemistries

  Shim-pack GWS C18
Bonded Phase Octadecyl Groups
Analysis Mode Reversed Phase
Features Economical C18 column with medium retentivity and high inertness
Particle Size (μm) 5
Pore Size (nm) 10
Surface Area (m2/g)
 450
Carbon Loading (%) 9.5
End Cap ○
pH Range 2-7.5
USP Code L1

Medium retentivity and high inertness

Analysis Examples

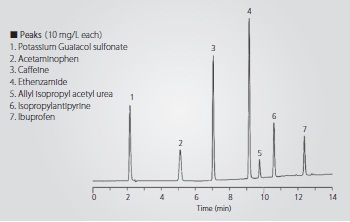

Cold medication

■Conditions

 Column  Shim-pack GWS C18
 (150 mmL. x 4.6 mmI.D., 5 μm)
 Eluent  A) 0.1%H3PO4
 B) CH3CN
 A/B
 = 90/10 - 2 min - 90/10 - 10 min - 0/100
 Flow Rate  1.0 mL/min.
 Col. Temp.  40 °C
 Detection  UV 210 nm
 Injection Vol.  10 μL
