IMAGEREVEAL MS - Specs

Mass Spectrometry Imaging Data Analysis Software

Add Bookmark

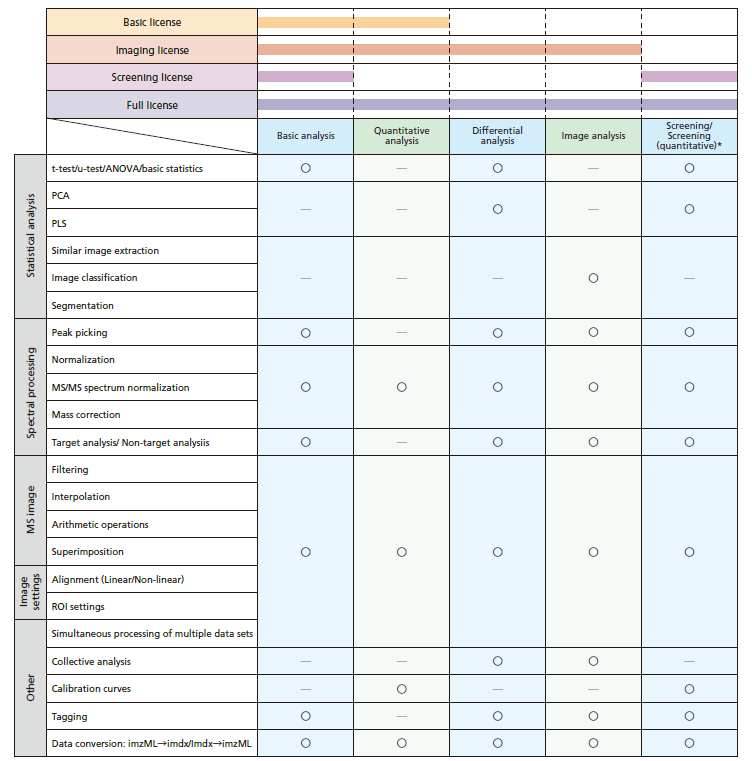

License and features





It is possible to upgrade from the basic license to any of the other 3 licenses, or from an imaging license or a screening license to a full license.

Screening/Screening (quantitative) is an analysis mode which automatically sets 1 ROI to 1 measurement point. It is convenient when measuring samples which differ at each measurement point. Differential analysis between measurement points can be carried out with "screening" and quantitative analysis between measurement points can be carried out with "screening (quantitative)".

IMAGEREVEAL™ MS Ver.1.1

OS

Windows 10 Pro 64 bit English/Japanese
CPU

Intel (R) Core i7 or Xeon
Memory

32 GB
Storage

The software uses both data files and temporary data storage.
Storage equivalent to at least 5 times the size of the file being processed is required.
Read more
Show Less
