CELL PICKER™ - Specs
Automated Pick and Collection Tool of Cell Colonies
Steps that can be automated using CELL PICKER

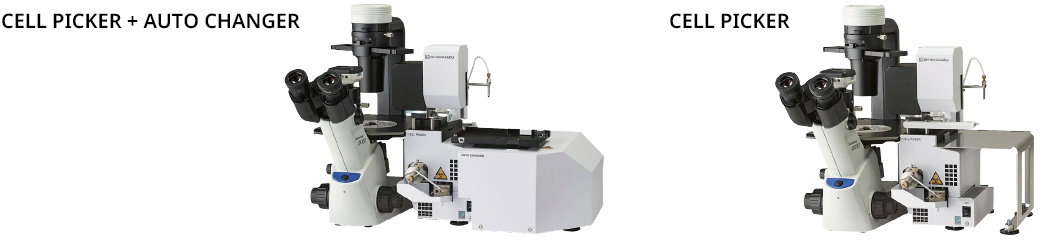

This shows the steps that can be automated using CELL PICKER on its own or with the AUTO CHANGER. System configuration can be selected according to the steps you want to automate.
| Manual Steps | CELL PICKER＋AUTO CHANGER | CELL PICKER |
|---|---|---|
| Moving the cultivation container and searching for cells | No | No |
| Determining a target | No | No |
| Attaching a tip to the pipetter | Yes |
Partially Supported
*Loaded one at a time manually
|
| Collecting cells | Yes | Yes |
| Determining the seeding positions | Yes |
No
*Transferred one well at a time manually
|
| Seeding | Yes | Yes |
| Discarding the tip | Yes | Yes |
CELL PICKER＋AUTO CHANGER
| Recommended Microscope |
Olympus CKX™53 |
|---|---|
| Number of Containers that can be Registered for Picking |
Up to 8 |
| Number of Containers that can be Registered for Seeding |
Up to 8 |
| Automated Seeding |
Yes |
| Recommended Pipette Tip (for 200 μL) |
Manufacturer: QSP (Thermo Fisher Scientific) |
| Suction amount |
Picking mode: 5/10/15 μL |
| Weight |
15.5 kg (AUTO CHANGER: 7 kg) |
| Size (not including microscope) |
W 585 mm×D536 mm×H456 mm |
| Power supply |
100 to 240 V AC, Frequency: 50/60 Hz, |
| Operating Environment |
Operating temperature: 10 to 35 °C |
CELL PICKER
| Recommended Microscope |
Olympus CKX™53 |
|---|---|
| Number of Containers that can be Registered for Picking |
Up to 8 |
| Number of Containers that can be Registered for Seeding |
None |
| Automated Seeding |
No |
| Recommended Pipette Tip (for 200 μL) |
Manufacturer: QSP (Thermo Fisher Scientific) |
| Suction amount |
Picking mode: 5/10/15 μL |
| Weight |
8.5kg |
| Size (not including microscope) |
W 448 mm×D536 mm×H456 mm |
| Power supply |
100 to 240 V AC, Frequency: 50/60 Hz, |
| Operating Environment |
Operating temperature: 10 to 35 °C |
