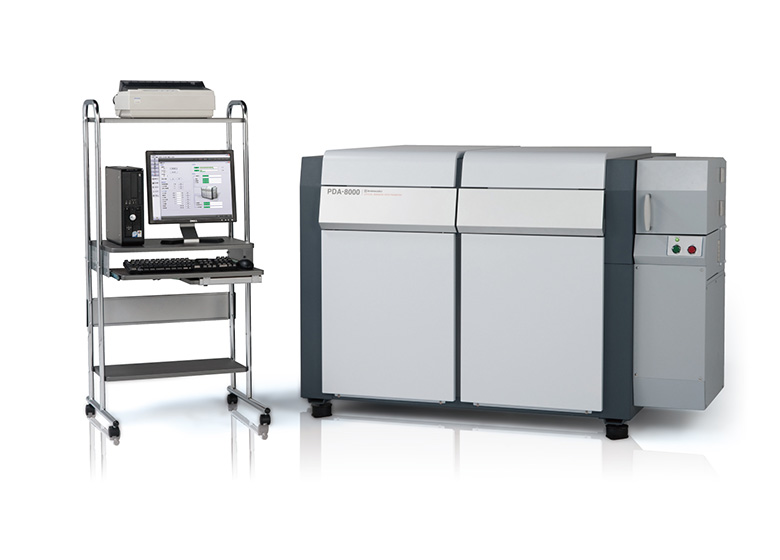

PDA-8000

Optical Emission Spectrometer

Add Bookmark

PDA-8000

This instrument is capable of high sensitivity quantitative analysis of iron and steel, copper, aluminum alloys and other solid metals, as well as impurities and other elements, thanks to a high resolution monochromator and discharge energy stabilized excitation unit. Excellent operability is achieved with software that enhances instrument monitoring and maintenance support functionality. In addition, this is an energy saving model that significantly reduces energy consumption.

Features

  • 317 - PDA-8000

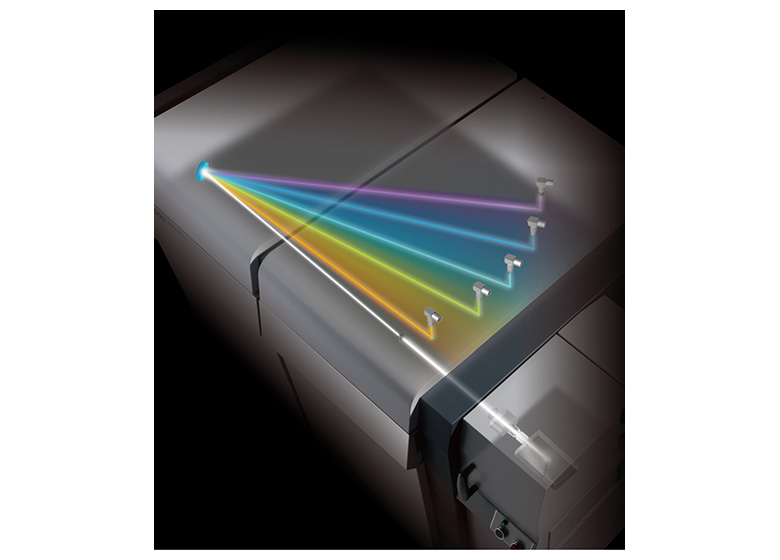

    New monochromator design for greater stability
    More Precise Analysis Achieved with a High Resolution Spectrometer
    Use of a diffraction grating with a wavelength range suitable for ferrous or non-ferrous applications in Paschen-Runge mounting of 1000 mm focal length offers high-resolution...
  • 317 - PDA-8000

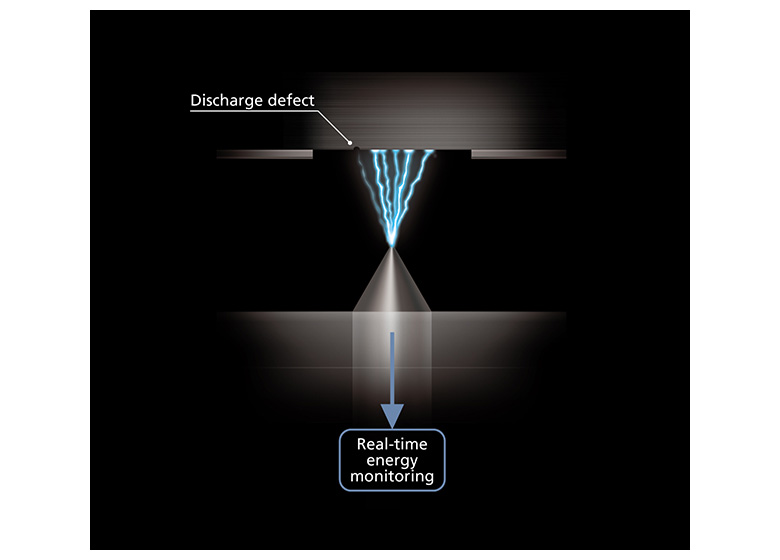

    A Novel Excitation Unit
    Constant Monitoring of the Discharge Status
    A Real-time Energy Monitoring function monitors the discharge energy consumed between the counter electrode and the sample. The discharge energy is accurately set and controlled...
  • 317 - PDA-8000

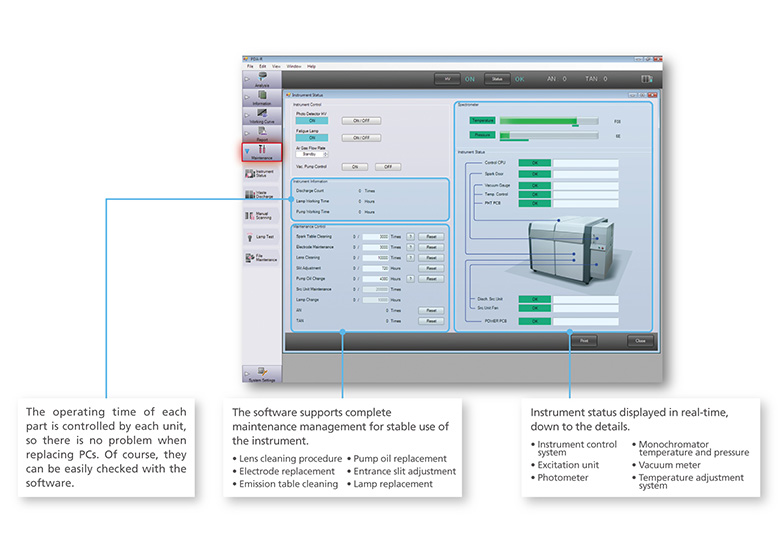

    Intuitive Software PDA-R
    Fusion of Hardware and Software
    Integrating software with the hardware enables reliable instrument management, from control and diagnosis to maintenance.
Learn more
