EDX-7200 - Specs

Energy Dispersive X-ray Fluorescence Spectrometer

Specifications

Measurement principle	X-ray fluorescence spectrometry
Measurement method	Energy dispersion
Target samples	Solids, liquids, powders
Measuring range	₁₁Na to ₉₂U (EDX-7200)
Sample size	W 300 × D 275 × approx.H 100 mm (excluding radiuses)
Maximum sample mass	5kg (200g per sample when using turret, Gross mass 2.4kg)

X-ray generator

X-ray tube	Rh target (Standard model/Premium model)^*1
Voltage	4 kV to 50 kV
Current	1 µA to 1000 µA
Cooling method	Air-cooled (with fan)
Irradiated area	Automatic switching in four stages: 1, 3, 5, and 10 mm diameter Automatic switching in four stages: 0.3, 1, 3, and 10 mm diameter^*1
Primary lters	Five types (six, including the open position), automatic replacement

Detector

Type	Silicon drift detector (SDD)
Liquid nitrogen	Not required (electronic cooling)

Sample chamber

Measurement atmosphere	Air, vacuum^2, helium (He)^2
Sample replacement	12-sample turret^*2
Sample observations	Semiconductor camera

Data processor

CPU	Intel^® Core™ i5 or above
Memory	4 GB min.
HDD	250 GB min.
Optical drive	Super multi drive
OS	Windows^® 10 pro (64-bit)^*3

Software

Qualitative analysis	Measurement/analysis software
Quantitative analysis	Calibration curve method, correction for coexistent elements, FP method, film FP method, background FP method
Matching software	Intensity/content
Utilities	Automatic calibration functions (energy calibration, FWHM calibration)
Others	Instrument status monitoring function, analysis results tabulation function

Installation

Temperature	10 ℃ to 30 ℃ (temperature uctuation rate 2 ℃/hour max., temperature fluctuation range: 10 ℃ max.) 12 to 30 ℃ when using vacuum measurement unit (option)
Relative humidity	40 % to 70 % (no condensation)
Power supply	100-240 V AC ±10 %, 2 A earthed socket
Dimensions	W 460 × D 590 × H 360 mm
Weight	Approx. 45 kg

Premium models with more durable X-ray tube windows.
Option
Microsoft^® Office is not included.

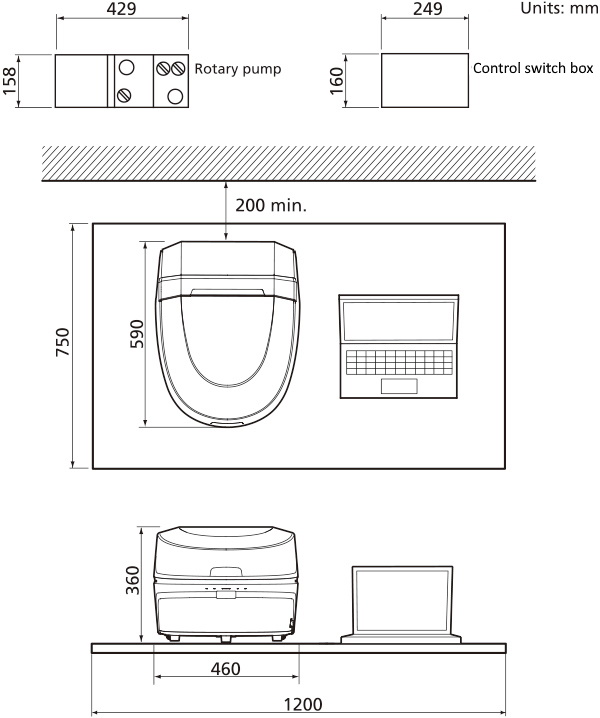

Installation Example

Vacuum measurement unit (optional) consists of a control switch box and rotary pump.
