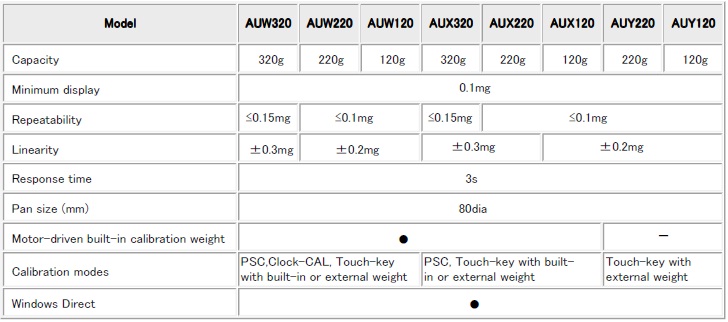

AU Series Specifications

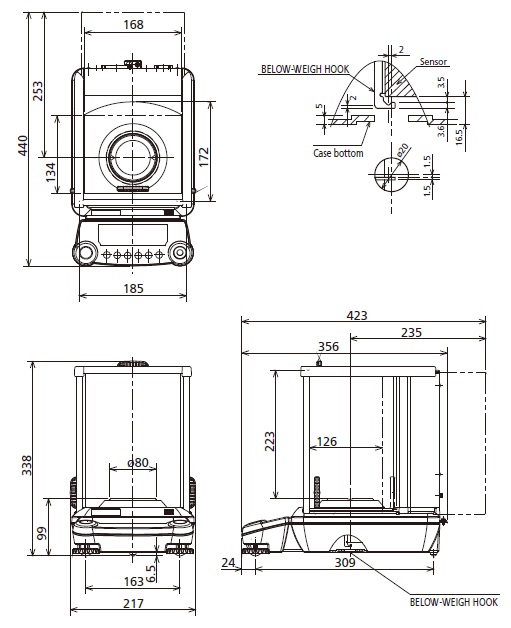

Physical Dimensions

AUW/AUX/AUY Series

Unit Dimension

Measurements in mm. 1mm=.03937"

AUW320

Capacity

320 g

Minimum display

0.1 mg

Repeatability (Standard deviation, σ)

≤0.15 mg

Linearity

±0.3 mg

Response time (typical)

3 s

Pan Size

80 mm dia. approx.

Calibration modes

PSC, Clock-CAL, Touch-key with built-in or external weight

Read more
Show Less

AUW220

Capacity

220 g

Minimum display

0.1 mg

Repeatability (Standard deviation, σ)

≤0.1 mg

Linearity

±0.2 mg

Response time (typical)

3 s

Pan Size

80 mm dia. approx.

Calibration modes

PSC, Clock-CAL, Touch-key with built-in or external weight

Read more
Show Less

AUW120

Capacity

120 g

Minimum display

0.1 mg

Repeatability (Standard deviation, σ)

≤0.1 mg

Linearity

±0.2 mg

Response time (typical)

3 s

Pan Size

80 mm dia. approx.

Calibration modes

PSC, Clock-CAL, Touch-key with built-in or external weight

Read more
Show Less

AUX320

Capacity

320 g

Minimum display

0.1 mg

Repeatability (Standard deviation, σ)

≤0.15 mg

Linearity

±0.3 mg

Response time (typical)

3 s

Pan Size

80 mm dia. approx.

Calibration modes

PSC, Touch-key with built-in or external weight

Read more
Show Less

AUX220

Capacity

220 g

Minimum display

0.1 mg

Repeatability (Standard deviation, σ)

≤0.1 mg

Linearity

±0.3 mg

Response time (typical)

3 s

Pan Size

80 mm dia. approx.

Calibration modes

PSC, Touch-key with built-in or external weight

Read more
Show Less

AUX120

Capacity

120 g

Minimum display

0.1 mg

Repeatability (Standard deviation, σ)

≤0.1 mg

Linearity

±0.2 mg

Response time (typical)

3 s

Pan Size

80 mm dia. approx.

Calibration modes

PSC, Touch-key with built-in or external weight

Read more
Show Less

AUY220

Capacity

220 g

Minimum display

0.1 mg

Repeatability (Standard deviation, σ)

≤0.1 mg

Linearity

±0.2 mg

Response time (typical)

3 s

Pan Size

80 mm dia. approx.

Calibration modes

Touch-key with external weight

Read more
Show Less

AUY120

Capacity

120 g

Minimum display

0.1 mg

Repeatability (Standard deviation, σ)

≤0.1 mg

Linearity

±0.2 mg

Response time (typical)

3 s

Pan Size

80 mm dia. approx.

Calibration modes

Touch-key with external weight

Read more
Show Less
